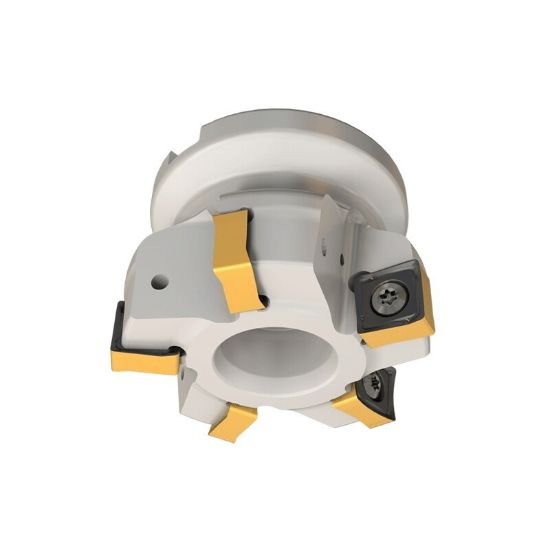

Picture of Iscar S890 FSN D5.0-09-1.50-R13 Milling Cutter 88.0° 5.000 Diameter Face Mill 1.500 2.047 OAL 9 Flute

Iscar S890 FSN D5.0-09-1.50-R13 Milling Cutter 88.0° 5.000 Diameter Face Mill 1.500 2.047 OAL 9 Flute

Part Number: ISC3106096 ISO: S890 FSN D5.0-09-1.50-R13 ANSI:S890 FSN D5.0-09-1.50-R13
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012420
Vendor: Sussex Tool and Supply
$1,305.60

Description

ISCAR 3106096 Square 88.0°, Face Mill SHELL1.5000 Negative 5.0000 127.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style S890
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7004916
Dimensions & Sizing
Overall Length 2.0470 51.99MM
Flutes/Inserts 9
Tool Dia 5.0000 127.00MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 88.0°
Performance & Capacity
Cut Dia Min 5.0000 127.00MM
Depth Of Cut Max 0.0470
Cut Dia Max 4.8620 123.49MM
Materials & Finish
Tool Material Steel
