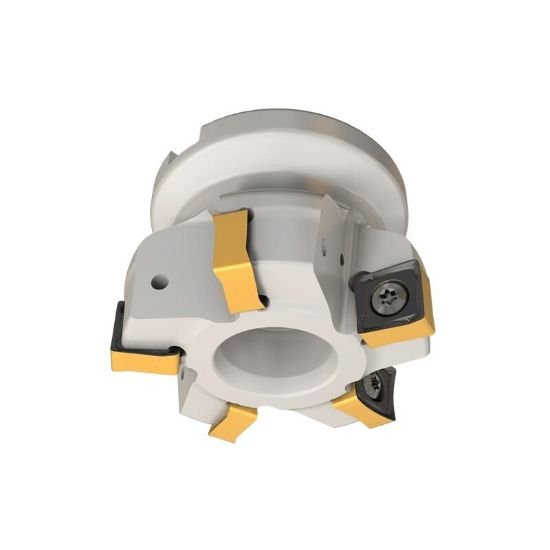

Picture of Iscar S890 FSN D2.5-05-1.00-R13 Milling Cutter 88.0° 2.500 Diameter Face Mill 1.000 1.797 OAL 5 Flute

Iscar S890 FSN D2.5-05-1.00-R13 Milling Cutter 88.0° 2.500 Diameter Face Mill 1.000 1.797 OAL 5 Flute

Part Number: ISC3106090 ISO: S890 FSN D2.5-05-1.00-R13 ANSI:S890 FSN D2.5-05-1.00-R13
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$764.16
SKU: 1012415

Description

ISCAR 3106090 Square 88.0°, Face Mill SHELL1.0000 Negative 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style S890
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7004916
Dimensions & Sizing
Overall Length 1.7970 45.64MM
Flutes/Inserts 5
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 88.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.0470
Cut Dia Max 2.3620 59.99MM
Materials & Finish
Tool Material Steel
