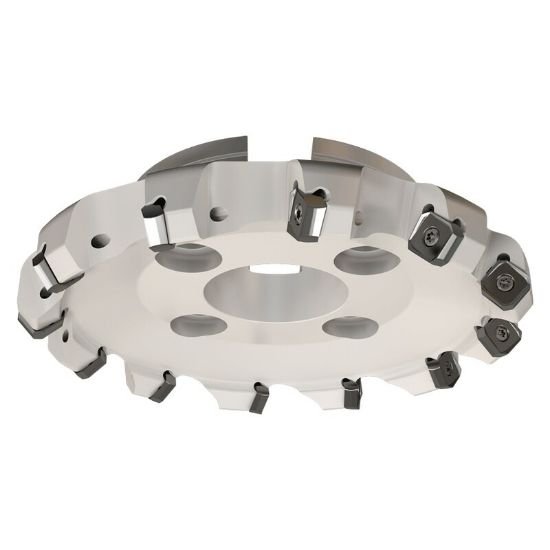

Picture of Iscar S845 F45SX D4.0-7-1.5-R16 Milling Cutter 45.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 7 Flute

Iscar S845 F45SX D4.0-7-1.5-R16 Milling Cutter 45.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 7 Flute

Part Number: ISC3181094 ISO: S845 F45SX D4.0-7-1.5-R16 ANSI:S845 F45SX D4.0-7-1.5-R16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012768
Vendor: Sussex Tool and Supply
$1,060.00
ISCAR 3181094 Square 45.0°, Face Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.5000 38.10MM
Overall Length 2.0000 50.80MM
Coolant Thru Thru Coolant
Flutes/Inserts 7
Tool Dia 4.0000 101.60MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Finishing, Roughing, Semi Finishing
Insert Style SX
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Insert Size Ic 16
Cut Dia Min 4.0000 101.60MM
Coolant Type Through Hole
Depth Of Cut Max 0.2760
Cut Dia Max 4.5800 116.33MM
Insert Screw 7002377
Cutting Edge Angle 45.0°
