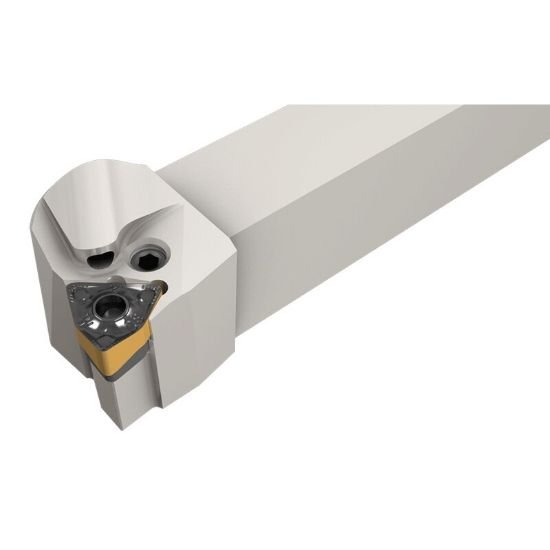

Picture of Iscar PWLNL 16-4X-JHP Turning Stick Tool Trigon Insert 1.000 Square

Iscar PWLNL 16-4X-JHP Turning Stick Tool Trigon Insert 1.000 Square

Part Number: ISC3603309 ISO: PWLNL 16-4X-JHP ANSI:PWLNL 16-4X-JHP
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1054283
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3603309 Trigon Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WN
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Left Hand
Inter/Extern External
Dimensions & Sizing
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 08 "45"
Tool Width 1.0000
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Trigon
