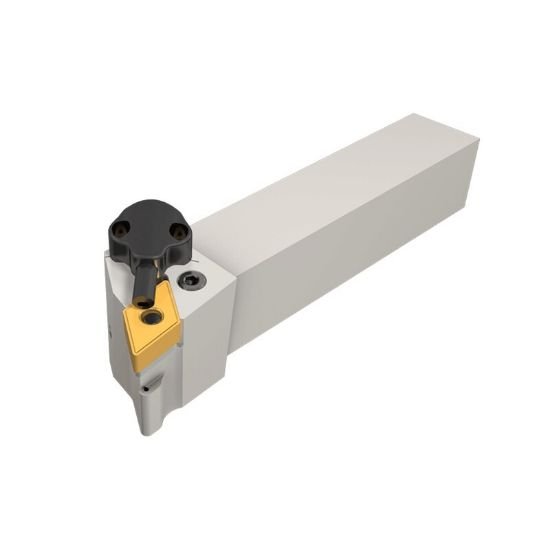

Picture of Iscar PDJNL 16-4-JHP Turning Stick Tool 55.0° Insert 1.000 Square

Iscar PDJNL 16-4-JHP Turning Stick Tool 55.0° Insert 1.000 Square

Part Number: ISC3603316 ISO: PDJNL 16-4-JHP ANSI:PDJNL 16-4-JHP
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1054290
Vendor: Sussex Tool and Supply
$324.48

Description

ISCAR 3603316 55.0 ° Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Dimensions & Sizing
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 12 "43"
Tool Width 1.0000
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 27.0° Clearance Angle
Clearance Angle 27.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
