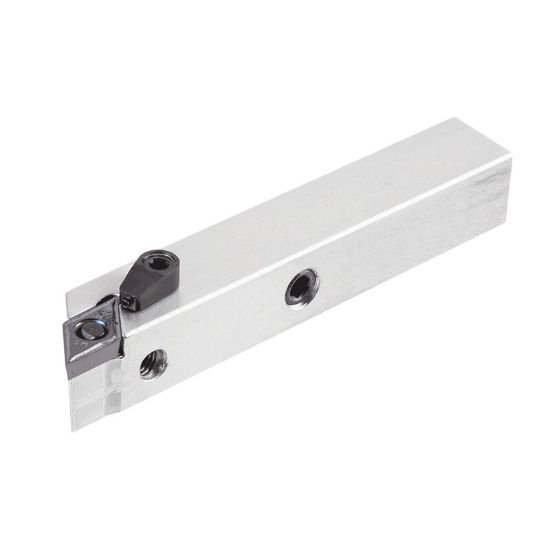

Picture of Iscar PDACL 08-3S-JHP Turning Stick Tool 55.0° Insert 0.500 Square

Iscar PDACL 08-3S-JHP Turning Stick Tool 55.0° Insert 0.500 Square

Part Number: ISC3603366 ISO: PDACL 08-3S-JHP ANSI:PDACL 08-3S-JHP
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1054297
Vendor: Sussex Tool and Supply
$382.08

Description

ISCAR 3603366 55.0 ° Stick Tool0.5000 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Left Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 11 "32"
Tool Width 0.5000
Geometry & Angles
Lead Angle 91°
Lead Angle & Clearance Angle Combined 91° Lead Angle 29.0° Clearance Angle, Swiss
Clearance Angle 29.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
