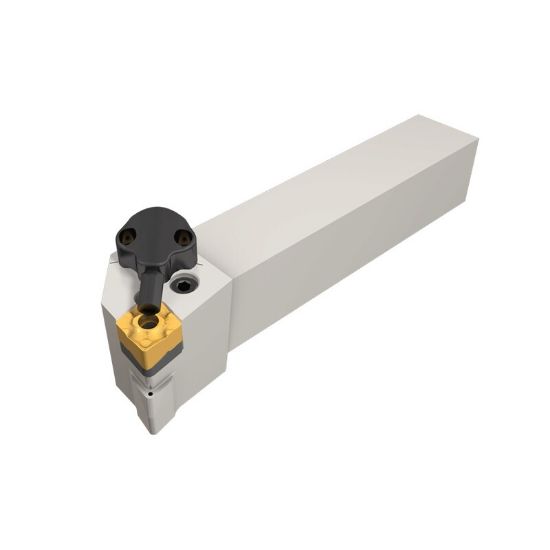

Picture of ISCAR PCLNR 16-3X-JHP Turning Stick Tool 80.0° Insert 1.000 Square

ISCAR PCLNR 16-3X-JHP Turning Stick Tool 80.0° Insert 1.000 Square

ANSI: PCLNR 16-3X-JHP

ISO: PCLNR 16-3X-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603450
Delivery date: 3-5 days
$300.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Supplied with TCX 3 seat for CNMX 34. inserts and TCN 323 seat for CNMG 33. inserts. TCX 4 seat for CNMX 45. inserts and TCN 443 seat for CNMG 43. inserts.

Details

Lever lock tools with channels for high pressure coolant carrying the CNMX/CNMG 80° rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Insert Type Negative
Additional Key Information 1 Stick Tool
Insert Application General Purpose
Additional Key Information 2 80.0°
Shipping State Texas
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 09 "33"
Lead Angle 95°
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Machine Side STICK TOOL1.0000
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style CN
Inter/Extern External
