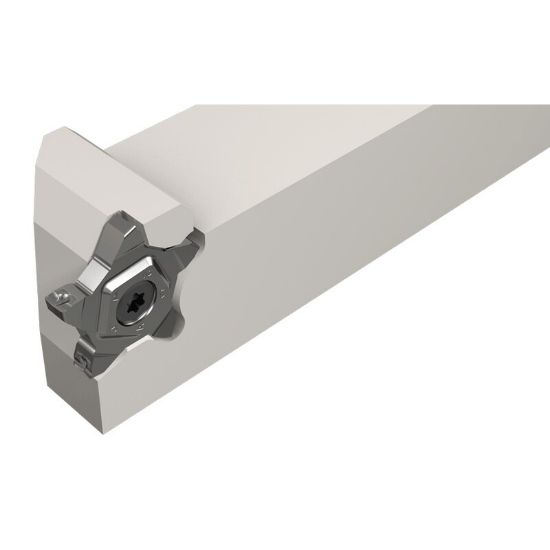

Picture of ISCAR PCHL 19-24-5 Cut Off,Grooving,Groove Threading Stick Tool 0.750 Tool

ISCAR PCHL 19-24-5 Cut Off,Grooving,Groove Threading Stick Tool 0.750 Tool

ANSI: PCHL 19-24-5

ISO: PCHL 19-24-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302958
Delivery date: 3-5 days
$178.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Grooving, parting and recessing holders carrying inserts with 5 cutting edges.

WF=f1+f2 (according to insert width (CW) being used)

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Threading, Swiss, Ext.Grooving, Parting
Package Size 1
Additional Key Information 1 Groove Threading, Cut Off, Grooving
Additional Key Information 4 Swiss
Insert/Tool Tool
Insert Application General Purpose
Additional Key Information 3 On Edge
Sold by Pieces 1
Shipping State Texas
Insert Type Positive
Additional Key Information 2 Stick Tool
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 24
Overall Len 5.0000 127.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Machine Side STICK TOOL0.7500
Cutting Width 0.1260 3.20MM
Depth Of Cut Max 0.2520
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Pentagonal
Inter/Extern External
Hand R/L Left
Insert Style PE
