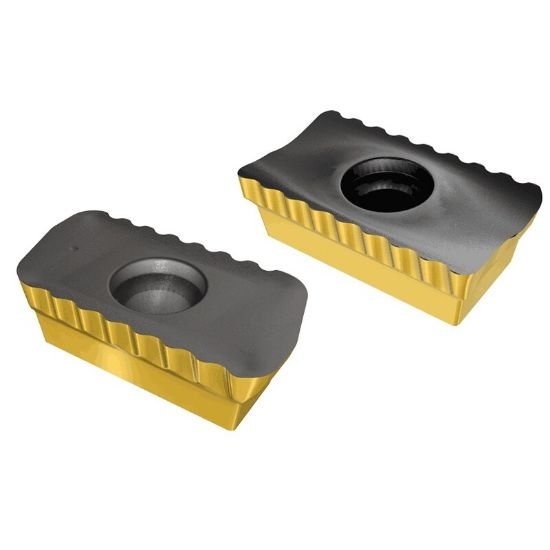

Picture of Iscar P290ACKT1806PDR-FW-E IC830 Insert Paralelagram
Picture of Iscar P290ACKT1806PDR-FW-E IC830 Insert Paralelagram
Picture of Iscar P290ACKT1806PDR-FW-E IC830 Insert Paralelagram
Picture of Iscar P290ACKT1806PDR-FW-E IC830 Insert Paralelagram

Iscar P290ACKT1806PDR-FW-E IC830 Insert Paralelagram

Part Number: ISC5607696 ISO: P290 ACKT1806PDR-FW-E IC830 ANSI:P290ACKT1806PDR-FW-E IC830
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturers: , ,
SKU: 1010984
Vendor: Sussex Tool and Supply
$29.46
This product has a minimum quantity of 10

Description

ISCAR 5607696 Parallelogram Insert Positive TiCN + TiN A tough submicron grain size substrate with SUMOTEC PVD coated grade. Used for machining Titanium and heat resistant alloys at medium to high cutting speeds. Excellent resistance to built-up edge, mechanical and thermal shock resistance.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS, TEXAS, TEXAS
Made In USA NO
Cutter Type Insert, Insert, Insert
Insert/Tool INSERT, INSERT, INSERT
Cut Type Roughing, Semi Finishing
Insert Style P290, P290
Insert Shape/Cutter Pocket Shape Parallelogram, Parallelogram, Parallelogram
Insert Type Positive
Dimensions & Sizing
Insert Size Ic 18, 18, 18
Geometry & Angles
Corner Radius 0.0470 1.19MM, 0.0470 1.19MM, 0.0470 1.19MM
Performance & Capacity
Cut Rating Stainless Steel, <55HRC Steel, Stainless Steel, High Temp, High Temp, High Temp, <40HRC Steel
Depth Of Cut Max 0.7090, 0.7090, 0.7090
Materials & Finish
Cutting Edge Mat Carbide, Carbide, Carbide
Coating AlTiN + TiN, TiCN + TiN, TiCN + TiN
Grade IC380, IC330
Compatibility & Fit
Insert Fits Parallelogram, Parallelogram, Parallelogram
