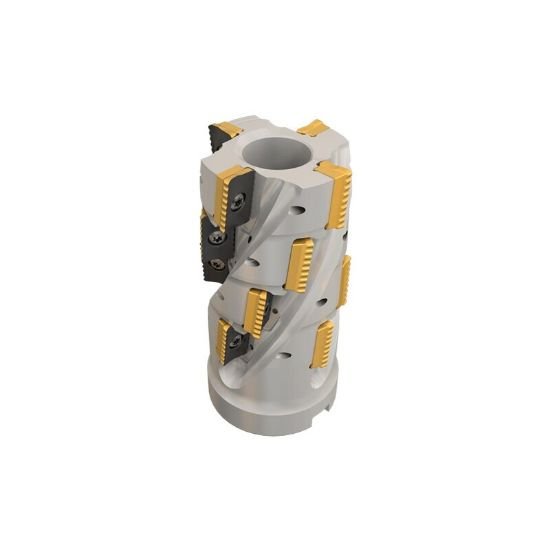

Picture of Iscar P290 SM D2.5-5-2.8-1.0-18 Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 1.000 3.940 OAL 20 Flute

Iscar P290 SM D2.5-5-2.8-1.0-18 Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 1.000 3.940 OAL 20 Flute

Part Number: ISC3110806 ISO: P290 SM D2.5-5-2.8-1.0-18 ANSI:P290 SM D2.5-5-2.8-1.0-18
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012701
Vendor: Sussex Tool and Supply
$1,440.00

Description

ISCAR 3110806 90.0°, Corn Cob SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7000402
Dimensions & Sizing
Overall Length 3.9400 100.08MM
Flutes/Inserts 20
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 18
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 1.4000
Materials & Finish
Tool Material Steel
