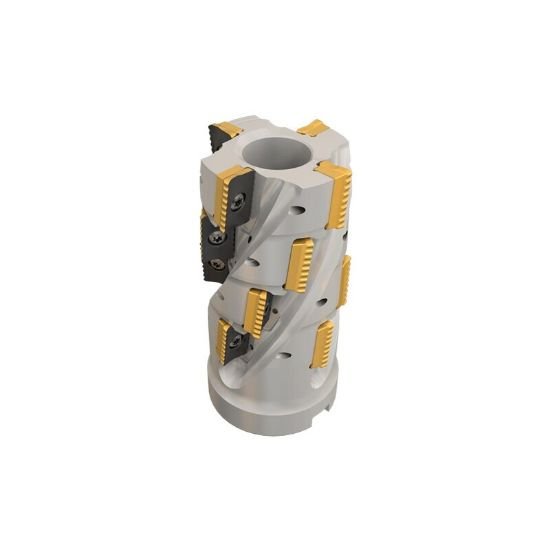

Picture of Iscar P290 SM D1.5-4-1.9-.75-12 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Face Mill 0.750 3.030 OAL 16 Flute

Iscar P290 SM D1.5-4-1.9-.75-12 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Face Mill 0.750 3.030 OAL 16 Flute

Part Number: ISC3110891 ISO: P290 SM D1.5-4-1.9-.75-12 ANSI:P290 SM D1.5-4-1.9-.75-12
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1012721

Description

ISCAR 3110891 90.0°, Corn Cob SHELL0.7500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006978
Dimensions & Sizing
Overall Length 3.0300 76.96MM
Flutes/Inserts 16
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 1.9070
Materials & Finish
Tool Material Steel
