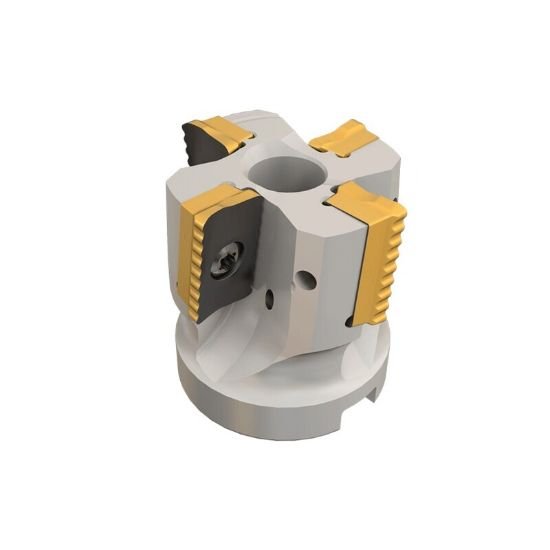

Picture of Iscar P290 FPW D1.50-4-.50-18 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.570 OAL 4 Flute

Iscar P290 FPW D1.50-4-.50-18 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.570 OAL 4 Flute

Part Number: ISC3110785 ISO: P290 FPW D1.50-4-.50-18 ANSI:P290 FPW D1.50-4-.50-18
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$579.84
SKU: 1012687

Description

ISCAR 3110785 90.0°, Face Mill SHELL0.5000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7000402
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 18
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.7080
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
