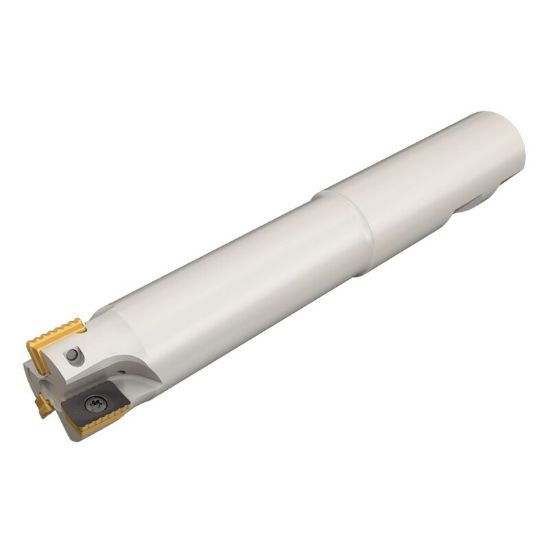

Picture of Iscar P290 EPW125-3-9.0-W125-18 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 9.000 OAL 3 Flute

Iscar P290 EPW125-3-9.0-W125-18 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 9.000 OAL 3 Flute

Part Number: ISC3110797 ISO: P290 EPW125-3-9.0-W125-18 ANSI:P290 EPW125-3-9.0-W125-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012693
Vendor: Sussex Tool and Supply
$503.00
ISCAR 3110797 90.0°, End Mill End Mill Weldon 1.2500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 9.0000 228.60MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 18
Cut Dia Min 1.2500 31.75MM - 1-1/4
Coolant Type Through Hole
Depth Of Cut Max 0.7080
Cut Dia Max 1.2500 31.75MM - 1-1/4
Insert Screw 7000402
Cutting Edge Angle 90.0°
Max Ramp Angle 2.00°
