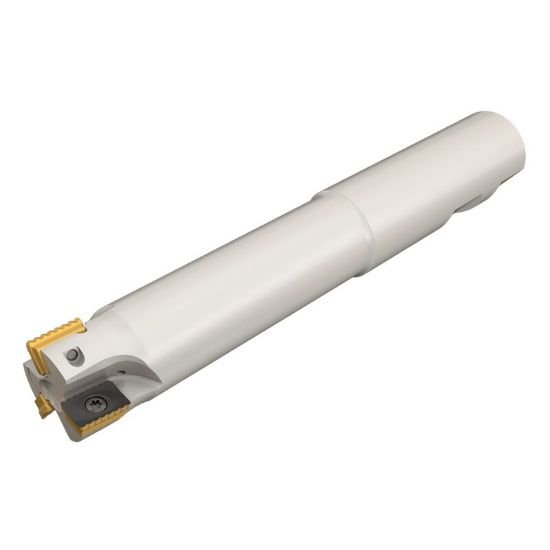

Picture of Iscar P290 EPW100-3-8.0-W1.0-12 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 8.000 OAL 3 Flute

Iscar P290 EPW100-3-8.0-W1.0-12 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 8.000 OAL 3 Flute

Part Number: ISC3181280 ISO: P290 EPW100-3-8.0-W1.0-12 ANSI:P290 EPW100-3-8.0-W1.0-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012800
Vendor: Sussex Tool and Supply
$455.00
ISCAR 3181280 90.0°, End Mill End Mill Weldon 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 8.0000 203.20MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 12
Cut Dia Min 1.0000 25.40MM
Coolant Type Through Hole
Depth Of Cut Max 0.4720
Cut Dia Max 1.0000 25.40MM
Insert Screw 7006979
Cutting Edge Angle 90.0°
Max Ramp Angle 1.40°
