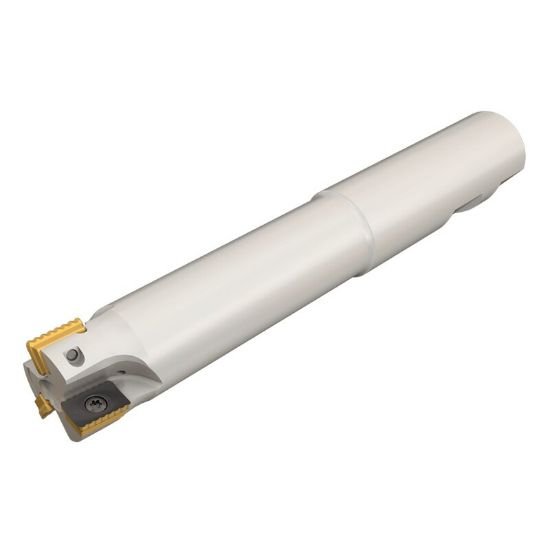

Picture of Iscar P290 EPW100-3-6.3-W1.0-12 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 6.300 OAL 3 Flute

Iscar P290 EPW100-3-6.3-W1.0-12 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 6.300 OAL 3 Flute

Part Number: ISC3181279 ISO: P290 EPW100-3-6.3-W1.0-12 ANSI:P290 EPW100-3-6.3-W1.0-12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012799
Vendor: Sussex Tool and Supply
$471.36

Description

ISCAR 3181279 90.0°, End Mill End Mill Weldon 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006979
Dimensions & Sizing
Overall Length 6.3000 160.02MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.4720
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 1.40°
Materials & Finish
Tool Material Steel
