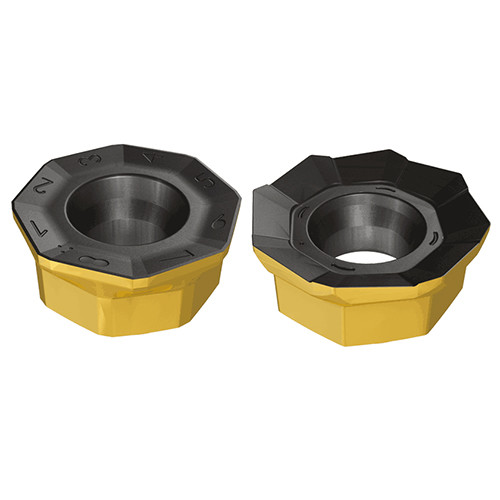

Picture of Iscar OXMT0507R08-FF IC808 Milling Feed Mill,45 Degree Octagonal Chamfer TiAlN + AlTiN + TiN

Iscar OXMT0507R08-FF IC808 Milling Feed Mill,45 Degree Octagonal Chamfer TiAlN + AlTiN + TiN

Part Number: ISC5606451 ISO: OXMT0507R08-FF IC808 ANSI:OXMT0507R08-FF IC808
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$32.48
This product has a minimum quantity of 10
SKU: 1010963

Description

ISCAR 5606451 Octagonal Feed Mill,45 Degree Positive TiAlN + AlTiN + TiN A tough, submicron substrate with excellent chipping resistance, combined with a "SUMO TEC" PVD coating. Provides high wear resistance. Recommended for a very wide range of materials.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Insert Style OX
Insert Shape/Cutter Pocket Shape Octagonal
Insert Type Positive
Dimensions & Sizing
Insert Size Ic 5
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Depth Of Cut Max 0.0470
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + AlTiN + TiN
Grade IC808
