  • ISCAR MNC2000-1000-150-110-12-5 2" Large Diameter Indexable Drills with a Pilot Drilling Head and One Flat Shank, Drilling Depth 5xD

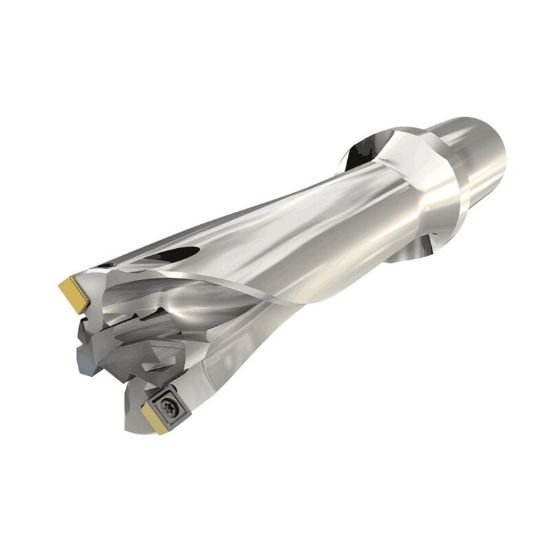

Picture of ISCAR MNC2000-1000-150-110-12-5 2" Large Diameter Indexable Drills with a Pilot Drilling Head and One Flat Shank, Drilling Depth 5xD

ISCAR MNC2000-1000-150-110-12-5 2" Large Diameter Indexable Drills with a Pilot Drilling Head and One Flat Shank, Drilling Depth 5xD

ISO: MNC2000-1000-150-110-12-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3260249
Delivery date: 3-5 days
$1,270.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Additional Key Information 1 Indexable Drill
Sold by Pieces 1
Shipping State Texas
Additional Key Information 2 Multi Insert
Additional Key Information 3 Drill
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 14.8160 376.33MM
Machine Side BBAR1.5000,WELDON1.5000
Machine Side Connection Type Boring Bar,Weldon
Flute Length 10.2500 260.35MM
Second Pocket SOGT 12
Cutter Dia 2.0000 50.80MM
Cut Dia Min 2.0000 50.80MM
Dia Deep 5.0XD
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
