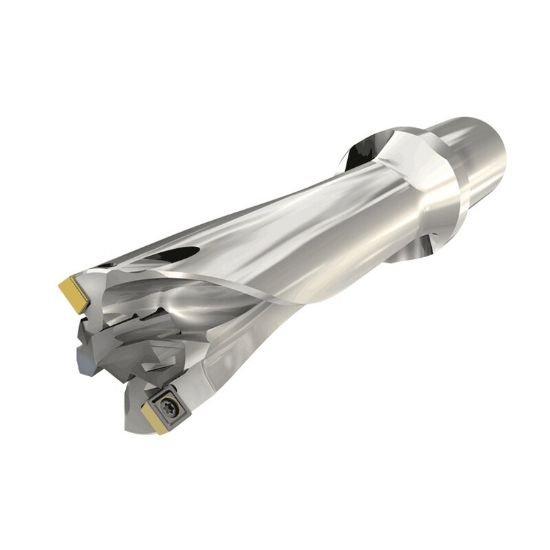

Picture of Iscar MNC1625-813-150-0965-10-5 1-5/8" Large Diameter Indexable Drills with a Pilot Drilling Head and One Flat Shank, Drilling Depth 5xD

Iscar MNC1625-813-150-0965-10-5 1-5/8" Large Diameter Indexable Drills with a Pilot Drilling Head and One Flat Shank, Drilling Depth 5xD

Part Number: ISC3203553 ISO: MNC1625-813-150-0965-10-5
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111937
Vendor: Sussex Tool and Supply
$1,264.70

Description

ISCAR 3203553 1-5/8" Large Diameter Indexable Drills with a Pilot Drilling Head and One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 12.6850 322.20MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 2
Tool Dia 1.6250 41.28MM - 1-5/8
Flute Length 8.3200 211.33MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 1.6250 41.28MM - 1-5/8
Materials & Finish
Tool Material Steel
