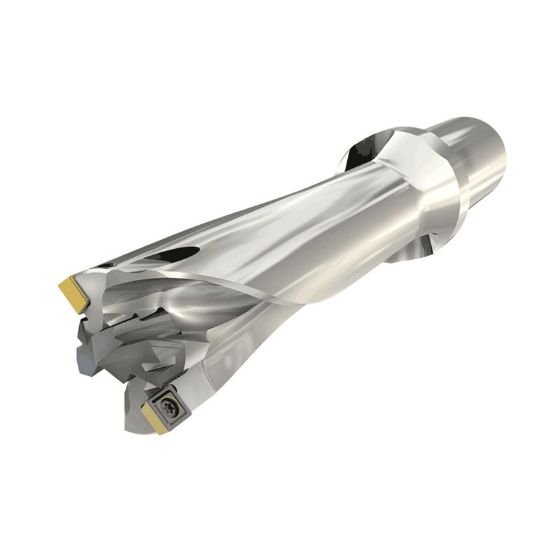

Picture of Iscar MNC1500-750-150-0827-10-5 1-1/2" Large Diameter Indexable Drills with a Pilot Drilling Head and One Flat Shank, Drilling Depth 5xD

Iscar MNC1500-750-150-0827-10-5 1-1/2" Large Diameter Indexable Drills with a Pilot Drilling Head and One Flat Shank, Drilling Depth 5xD

Part Number: ISC3260248

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112059
Vendor: Sussex Tool and Supply
$1,215.00
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Cutter Type Drill
Made In USA No
Machine Side (Toolpost) BBAR1.5000, WELDON1.5000
Machine Side (Toolpost) Connection Type Boring Bar, Weldon
Overall Length 11.9340 303.12MM
Shank Or Pilot Diameter 1.5000 38.10MM - 1-1/2
Family Group COMBICHAM
Coolant Thru Thru Coolant
Mach Side Connection Size 1.5000 38.10MM - 1-1/2
Tool Diameter 1.5000 38.10MM - 1-1/2
Flutes Or Inserts 2
Type of Tool Drill
Flute Length 7.6600 194.56MM
Cut Diameter Min 1.5000 38.10MM - 1-1/2
Diameter Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Second Pocket SOGT 10
