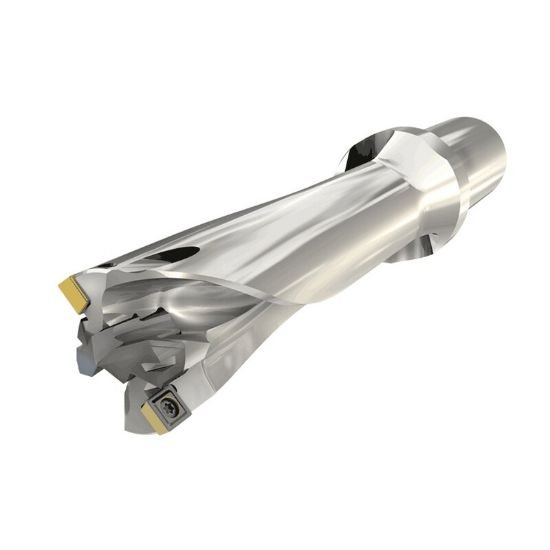

Picture of Iscar MNC1125-563-125-0630-07-5 1-1/8" Large Diameter Indexable Drills with a Pilot Drilling Head and One Flat Shank, Drilling Depth 5xD

Iscar MNC1125-563-125-0630-07-5 1-1/8" Large Diameter Indexable Drills with a Pilot Drilling Head and One Flat Shank, Drilling Depth 5xD

Part Number: ISC3203550

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111935
Vendor: Sussex Tool and Supply
$1,055.00
Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.2500 31.75MM - 1-1/4
Cutter Type Drill
Overall Length 9.5720 243.13MM
Machine Side (Toolpost) WELDON1.2500, BBAR1.2500
Second Pocket SOGX 07
Cutting Edge Definition including cutting tools, Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, dies, and others., knives, hand tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Weldon, Boring Bar
Flutes Or Inserts 2
Shipping State TEXAS
Type Indexable Drill Multi Insert
Family Group COMBICHAM
Tool Material Steel
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Tool Diameter 1.1250 28.58MM - 1-1/8
Cut Diameter Min 1.1250 28.58MM - 1-1/8
Coolant Thru Thru Coolant
Drill Type Indexable Drill
Made In USA No
Flute Length 5.7500 146.05MM
Diameter Deep 5.0x Dia
