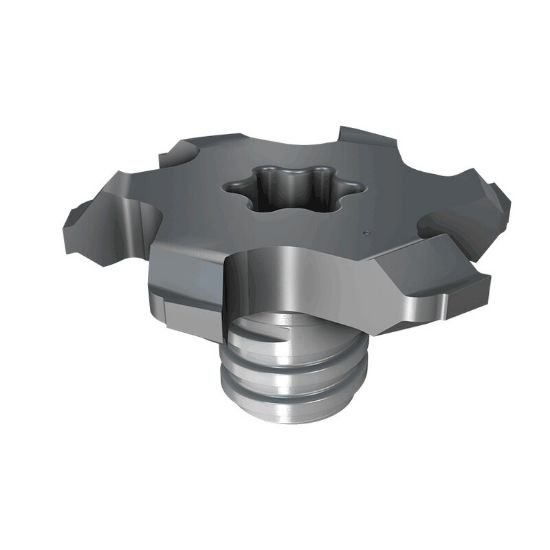

Picture of Iscar MM TS225C193T100-6T08 IC928 Dia 22.50mm SH T08 OAL0.3950T-Slot,Replacable Head Carbide TiAlN Single End 0.0039 0.10mm MULTI-Master

Iscar MM TS225C193T100-6T08 IC928 Dia 22.50mm SH T08 OAL0.3950T-Slot,Replacable Head Carbide TiAlN Single End 0.0039 0.10mm MULTI-Master

Part Number: ISC3327631
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181482
Vendor: Sussex Tool and Supply
$102.23

Description

ISCAR MM TS225C193T100-6T08 IC928 T-Slot,Replacable Head Carbide TiAlN 0.0039 0.10MM Flutes 6 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
Cutter Style Screw On T-Slot
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.3950 10.03MM
Shank/Pilot Dia T08
Flutes/Inserts 6
Tool Dia 0.8858 22.50MM
Cutting Width 0.0760 1.93MM
Geometry & Angles
Corner Radius 0.0039 0.10MM
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
