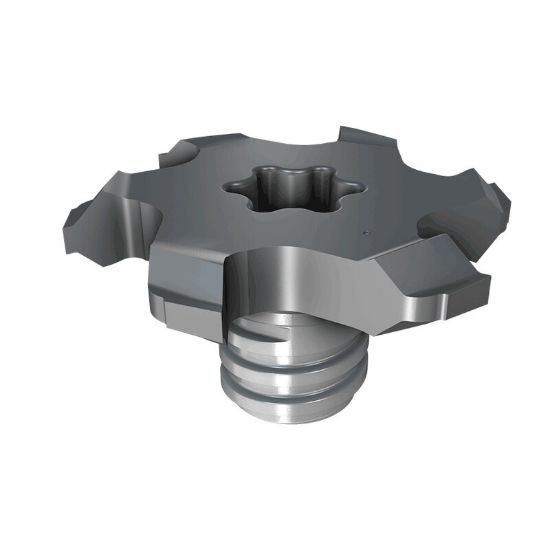

Iscar MM TS127C118T050-6T05 IC928 Dia 1/2 SH T05 OAL0.3320T-Slot,Replacable Head Carbide TiAlN Single End 0.0020 0.05mm MULTI-Master

Part Number: ISC3327611

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1183378
$96.50
ISCAR MM TS127C118T050-6T05 IC928 T-Slot,Replacable Head Carbide TiAlN 0.0020 0.05MM Flutes 6 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TiAlN
Mach Side Connection Size T05
Overall Length 0.3320 8.43MM
Coolant Thru Non Coolant
Flutes/Inserts 6
Tool Dia 0.5000 12.70MM - 1/2
Length Type STANDARD
Performance Rating High Performance
Cutter Style Screw On T-Slot
Single/Double End Single End
Corner Radius 0.0020 0.05MM
Inch/Metric Inch
Center Cutting Non Center Cutting
Cutting Width 0.0460 1.17MM
