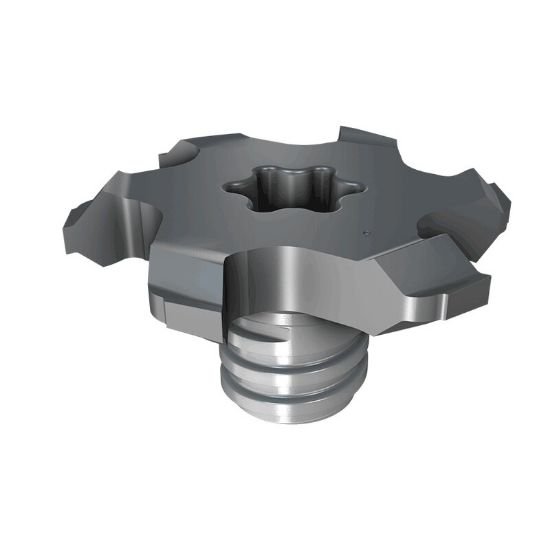

Iscar MM TS127C118T035-6T05 IC928 Dia 1/2 SH T05 OAL0.3320T-Slot,Replacable Head Carbide TiAlN Single End 0.0020 0.05mm MULTI-Master
Iscar MM TS127C118T035-6T05 IC928 Dia 1/2 SH T05 OAL0.3320T-Slot,Replacable Head Carbide TiAlN Single End 0.0020 0.05mm MULTI-Master
Part Number: ISC3327609
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
ISCAR
SKU:
1183376
Vendor:
Sussex Tool and Supply
$96.50
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
ISCAR MM TS127C118T035-6T05 IC928 T-Slot,Replacable Head Carbide TiAlN 0.0020 0.05MM Flutes 6 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name
Attribute value
Shipping State
TEXAS
Made In USA
NO
Cutter Type
T-Slot, Screw On Head
Tool Material
Carbide
Cutting Edge Mat
Carbide
Machine Side Connection Type
Screw On
Cut Rating
<48HRC Steel, Stainless Steel, High Temp
Coating
TiAlN
Mach Side Connection Size
T05
Overall Length
0.3320 8.43MM
Coolant Thru
Non Coolant
Flutes/Inserts
6
Tool Dia
0.5000 12.70MM - 1/2
Length Type
STANDARD
Performance Rating
High Performance
Cutter Style
Screw On T-Slot
Single/Double End
Single End
Corner Radius
0.0020 0.05MM
Inch/Metric
Inch
Center Cutting
Non Center Cutting
Cutting Width
0.0460 1.17MM
