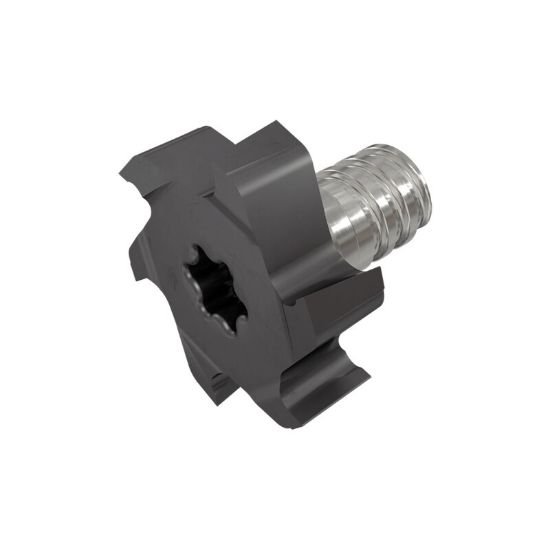

Picture of Iscar MM TS.625-H056D-06T06 IC328 Dia 5/8 SH T06T-Slot,Replacable Head Carbide TiCN Single End 0.0160 0.41mm MULTI-Master

Iscar MM TS.625-H056D-06T06 IC328 Dia 5/8 SH T06T-Slot,Replacable Head Carbide TiCN Single End 0.0160 0.41mm MULTI-Master

Part Number: ISC5605820

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1189496
Vendor: Sussex Tool and Supply
$0.00
ISCAR MM TS.625-H056D-06T06 IC328 T-Slot,Replacable Head Carbide TiCN 0.0160 0.41MM Flutes 6 Single End MULTI-MASTER Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TICN
Mach Side Connection Size T06
Coolant Thru Non Coolant
Shank/Pilot Dia T06
Flutes/Inserts 6
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating High Performance
Cutter Style Screw On T-Slot
Single/Double End Single End
Corner Radius 0.0160 0.41MM
Inch/Metric Inch
Center Cutting Non Center Cutting
Cutting Width 0.0560 1.42MM
Chamfer Angle 90.0°
