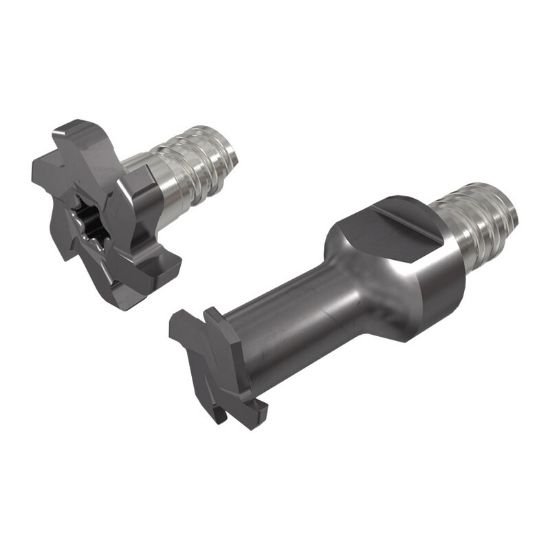

Picture of Iscar MM TS.500-N062P-06T05 IC328 Dia 1/2 SH T05T-Slot,Replacable Head Carbide TiCN Single End MULTI-Master

Iscar MM TS.500-N062P-06T05 IC328 Dia 1/2 SH T05T-Slot,Replacable Head Carbide TiCN Single End MULTI-Master

Part Number: ISC5603777
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1183397
Vendor: Sussex Tool and Supply
$75.79

Description

ISCAR MM TS.500-N062P-06T05 IC328 T-Slot,Replacable Head Carbide TiCN Flutes 6 Single End MULTI-MASTER Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
Cutter Style Screw On T-Slot
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Flutes/Inserts 6
Tool Dia 0.5000 12.70MM - 1/2
Cutting Width 0.0620 1.57MM
Geometry & Angles
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
