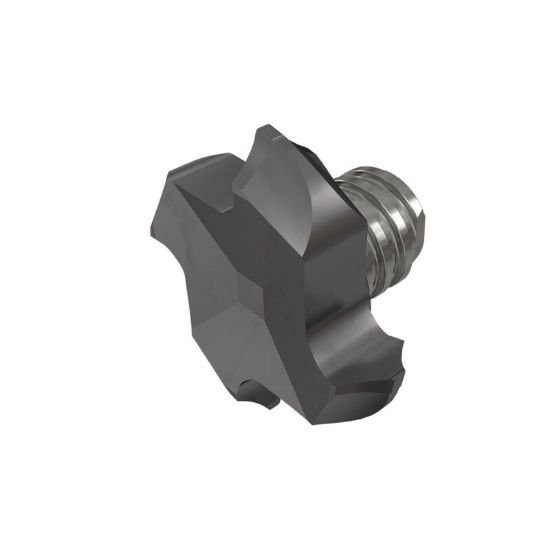

Picture of Iscar MM SS22M150Z1720-4T08 IC528 Dia 0.845 SH T08 OAL0.5310Chamfer Mill,Replacable Head Carbide TiCN + TiN Single End Cham Mill MULTI-Master

Iscar MM SS22M150Z1720-4T08 IC528 Dia 0.845 SH T08 OAL0.5310Chamfer Mill,Replacable Head Carbide TiCN + TiN Single End Cham Mill MULTI-Master

Part Number: ISC6410756

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1181404
Vendor: Sussex Tool and Supply
$114.00
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter T08
Cutter Type Screw On Head, Chamfer Mill
Length Type STANDARD
Performance Rating High Performance
Center Cutting Non Center Cutting
Overall Length 0.5310 13.49MM
Machine Side (Toolpost) T08
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
End Of Tool Shape Chamfer
Cutter Style Screw On Double Angle Chamfer
Inch Or Metric Inch
Cutting Width 0.2130 5.41MM
Machine Side (Toolpost) Connection Type Screw On
Flutes Or Inserts 4
Shipping State TEXAS
Family Group Multi-Master
Single Or Double End Single End
Cutting Edge Material Carbide
Tool Material Carbide
Mach Side Connection Size T08
Coating TiCN + TiN
Tool Diameter 0.8540 21.69MM
Coolant Thru Non Coolant
Chamfer Angle 45.0°
Made In USA No
