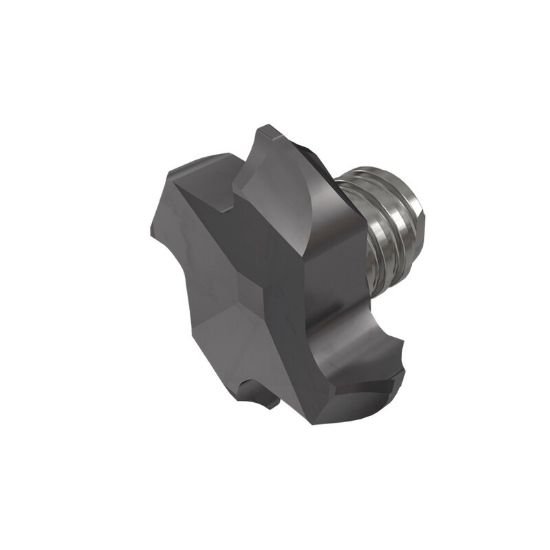

Picture of Iscar MM SS22M100Z2125-4T08 IC528 Dia 0.845 SH T08 OAL0.4960Chamfer Mill,Replacable Head Carbide TiCN + TiN Single End Cham Mill MULTI-Master

Iscar MM SS22M100Z2125-4T08 IC528 Dia 0.845 SH T08 OAL0.4960Chamfer Mill,Replacable Head Carbide TiCN + TiN Single End Cham Mill MULTI-Master

Part Number: ISC6410755
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181403
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR MM SS22M100Z2125-4T08 IC528 Chamfer Mill,Replacable Head Carbide TiCN + TiN Cham Mill Flutes 4 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Chamfer
Cutter Style Screw On Double Angle Chamfer
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.4960 12.60MM
Shank/Pilot Dia T08
Flutes/Inserts 4
Tool Dia 0.8540 21.69MM
Cutting Width 0.1770 4.50MM
Geometry & Angles
Chamfer Angle 45.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiCN + TiN
