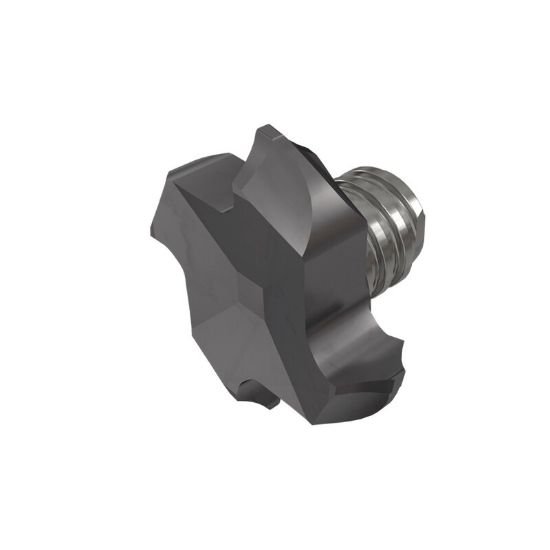

Picture of Iscar MM SS22M100Z1720-4T08 IC528 Dia 0.845 SH T08 OAL0.5350Chamfer Mill,Replacable Head Carbide TiCN + TiN Single End Cham Mill MULTI-Master

Iscar MM SS22M100Z1720-4T08 IC528 Dia 0.845 SH T08 OAL0.5350Chamfer Mill,Replacable Head Carbide TiCN + TiN Single End Cham Mill MULTI-Master

Part Number: ISC6410754

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1181402
Vendor: Sussex Tool and Supply
$0.00
ISCAR MM SS22M100Z1720-4T08 IC528 Chamfer Mill,Replacable Head Carbide TiCN + TiN Cham Mill Flutes 4 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill, Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TiCN + TiN
Mach Side Connection Size T08
Overall Length 0.5350 13.59MM
Coolant Thru Non Coolant
Shank/Pilot Dia T08
Flutes/Inserts 4
Tool Dia 0.8540 21.69MM
Length Type STANDARD
Performance Rating High Performance
End Of Tool Shape Chamfer
Cutter Style Screw On Double Angle Chamfer
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Cutting Width 0.2170 5.51MM
Chamfer Angle 45.0°
