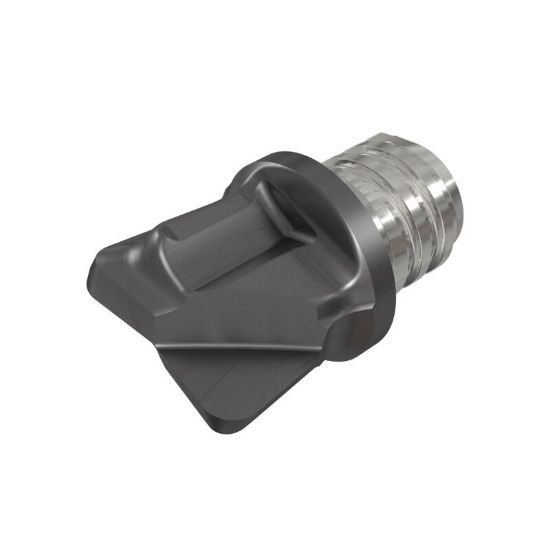

Picture of Iscar MM HT120N06R1.6-2T08 IC903 Dia 12mm SH T08 LOC 0.2240 OAL0.7500Screw On Head Standard Flute High Helix Carbide TiAlN Single End Corner Radius0.0630 1.60mm MULTI-Master

Iscar MM HT120N06R1.6-2T08 IC903 Dia 12mm SH T08 LOC 0.2240 OAL0.7500Screw On Head Standard Flute High Helix Carbide TiAlN Single End Corner Radius0.0630 1.60mm MULTI-Master

Part Number: ISC5622729 0.472 x 0.453 x 0.224 x 0.750
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1180927

Description

ISCAR MM HT120N06R1.6-2T08 IC903 High Helix Screw On Head Carbide TiAlN Corner Radius 0.0630 1.60MM Standard Flute Flutes 2 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.7500 19.05MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Length Of Cut 0.2240 5.69MM
Geometry & Angles
Corner Radius 0.0630 1.60MM
Chamfer Angle 97.0°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
