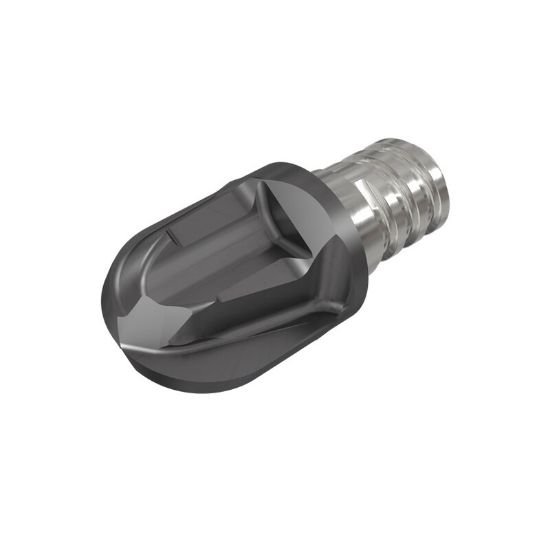

Picture of Iscar MM HRF.375-2T06 IC903 Dia 3/8 SH T06 LOC 0.3799 OAL0.7420End Mill,Replacable Head Standard Flute High Helix Carbide TiAlN Single End Ball NoseBall MULTI-Master

Iscar MM HRF.375-2T06 IC903 Dia 3/8 SH T06 LOC 0.3799 OAL0.7420End Mill,Replacable Head Standard Flute High Helix Carbide TiAlN Single End Ball NoseBall MULTI-Master

Part Number: ISC5605926 0.375 x 0.360 x 0.380 x 0.742
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1188654
Vendor: Sussex Tool and Supply
$84.83

Description

ISCAR MM HRF.375-2T06 IC903 High Helix End Mill,Replacable Head Carbide TiAlN Ball Nose Ball Standard Flute Flutes 2 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 0.7420 18.85MM
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.3799 9.65MM
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
