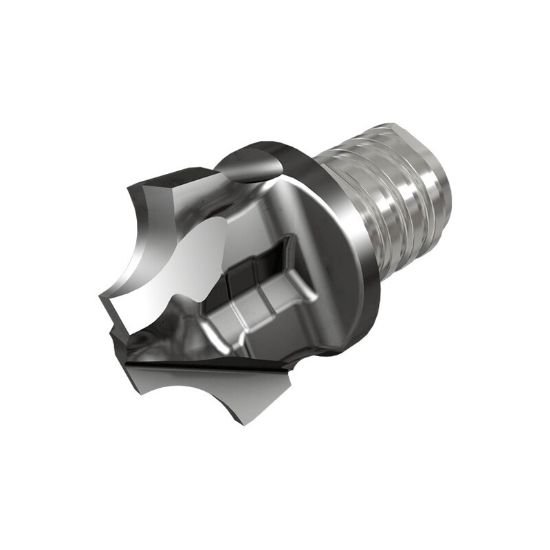

Picture of Iscar MM HR5.0/188-6.2-2T10 IC908 Dia 6.20mm SH T10 LOC 0.5910 OAL0.2200Corner Rounder,Replacable Head Carbide TiAlN Single End Corner Rounder0.1970 5.00mm MULTI-Master

Iscar MM HR5.0/188-6.2-2T10 IC908 Dia 6.20mm SH T10 LOC 0.5910 OAL0.2200Corner Rounder,Replacable Head Carbide TiAlN Single End Corner Rounder0.1970 5.00mm MULTI-Master

Part Number: ISC5604526 0.244 x 0.598 x 0.591 x 0.220

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1180559
Vendor: Sussex Tool and Supply
$159.00
ISCAR MM HR5.0/188-6.2-2T10 IC908 Corner Rounder,Replacable Head Carbide TiAlN Corner Rounder 0.1970 5.00MM Flutes 2 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head, Corner Rounder
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating TiAlN
Mach Side Connection Size T10
Overall Length 0.2200 5.59MM
Coolant Thru Non Coolant
Flutes/Inserts 2
Tool Dia 0.2441 6.20MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5910 15.01MM
End Of Tool Shape Corner Rounder
Cutter Style Screw On Corner Rounding
Single/Double End Single End
Corner Radius 0.1970 5.00MM
Inch/Metric Inch
Center Cutting Non Center Cutting
