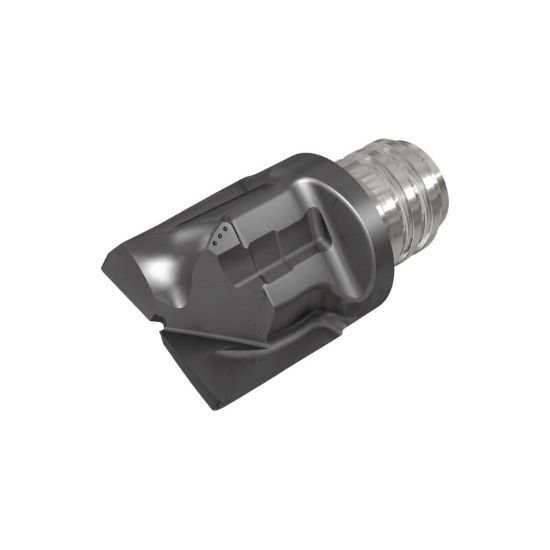

Picture of Iscar MM HC160C16R0.4-2T10 IC908 Dia 16mm SH T10 LOC 0.5870 OAL1.2130Screw On Head Carbide TiAlN Single End Drill Point0.0160 0.41mm MULTI-Master

Iscar MM HC160C16R0.4-2T10 IC908 Dia 16mm SH T10 LOC 0.5870 OAL1.2130Screw On Head Carbide TiAlN Single End Drill Point0.0160 0.41mm MULTI-Master

Part Number: ISC5603802 0.630 x 0.598 x 0.587 x 1.213

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1181218
Vendor: Sussex Tool and Supply
$122.00
ISCAR MM HC160C16R0.4-2T10 IC908 Screw On Head Carbide TiAlN Drill Point 0.0160 0.41MM Flutes 2 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating TiAlN
Mach Side Connection Size T10
Overall Length 1.2130 30.81MM
Coolant Thru Non Coolant
Flutes/Inserts 2
Tool Dia 0.6299 16.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5870 14.91MM
End Of Tool Shape Drill Point
Cutter Style Screw On Carbide Drill/Mill
Single/Double End Single End
Corner Radius 0.0160 0.41MM
Inch/Metric Inch
Helix Angle 10
Center Cutting Center Cutting
Chamfer Angle 90.0°
