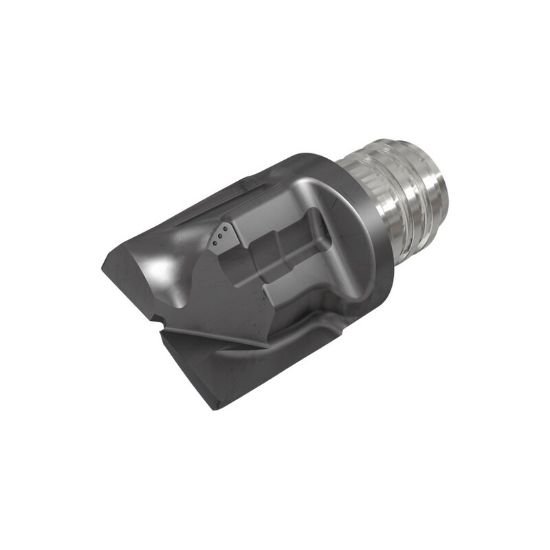

Picture of Iscar MM HC.625C63R016-2T10 IC908 Dia 5/8 SH T10 LOC 0.60 OAL1.2130Screw On Head Carbide TiAlN Single End Drill Point0.0160 0.41mm MULTI-Master

Iscar MM HC.625C63R016-2T10 IC908 Dia 5/8 SH T10 LOC 0.60 OAL1.2130Screw On Head Carbide TiAlN Single End Drill Point0.0160 0.41mm MULTI-Master

Part Number: ISC5604117 0.625 x 0.602 x 0.600 x 1.213
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1189515
Vendor: Sussex Tool and Supply
$115.46

Description

ISCAR MM HC.625C63R016-2T10 IC908 Screw On Head Carbide TiAlN Drill Point 0.0160 0.41MM Flutes 2 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Drill Point
Cutter Style Screw On Carbide Drill/Mill
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 1.2130 30.81MM
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.6000 15.24MM
Geometry & Angles
Corner Radius 0.0160 0.41MM
Helix Angle 10
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
