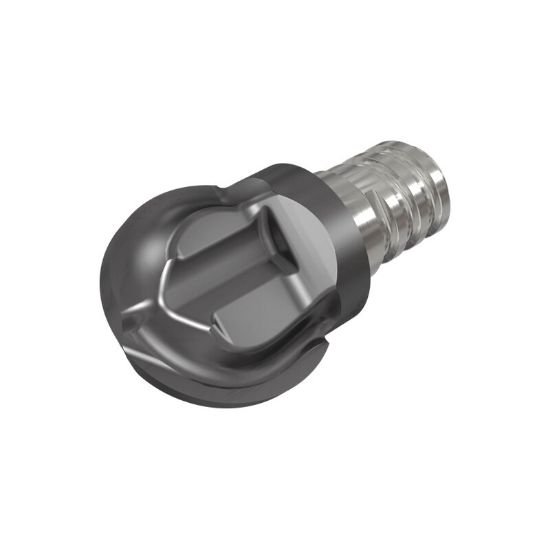

Picture of Iscar MM HBR160-2T08 IC908 Dia 16mm SH T08 OAL0.9190End Mill,Replacable Head Standard Flute High Helix Carbide TiAlN Single End Ball NoseBall MULTI-Master

Iscar MM HBR160-2T08 IC908 Dia 16mm SH T08 OAL0.9190End Mill,Replacable Head Standard Flute High Helix Carbide TiAlN Single End Ball NoseBall MULTI-Master

Part Number: ISC5621630
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181215
Vendor: Sussex Tool and Supply
$166.58

Description

ISCAR MM HBR160-2T08 IC908 High Helix End Mill,Replacable Head Carbide TiAlN Ball Nose Ball Standard Flute Flutes 2 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill Screw On Head
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Screw On Spherical Ball Inserts
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 0.9190 23.34MM
Flutes/Inserts 2
Tool Dia 0.6299 16.00MM
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
