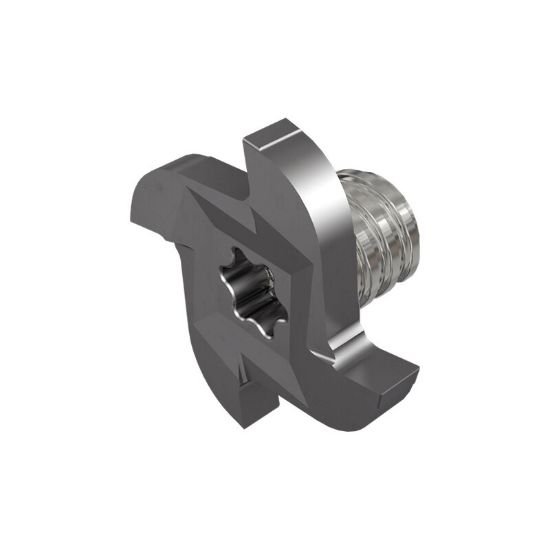

Picture of Iscar MM GRIT22P200-020-4T8 IC908 Dia 0.845 SH T08 OAL0.3980T-Slot,Replacable Head Carbide TiAlN Single End 0.0080 0.20mm MULTI-Master

Iscar MM GRIT22P200-020-4T8 IC908 Dia 0.845 SH T08 OAL0.3980T-Slot,Replacable Head Carbide TiAlN Single End 0.0080 0.20mm MULTI-Master

Part Number: ISC3329295
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181430
Vendor: Sussex Tool and Supply
$62.25

Description

ISCAR MM GRIT22P200-020-4T8 IC908 T-Slot,Replacable Head Carbide TiAlN 0.0080 0.20MM Flutes 4 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
Cutter Style Screw On T-Slot
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.3980 10.11MM
Shank/Pilot Dia T08
Flutes/Inserts 4
Tool Dia 0.8540 21.69MM
Cutting Width 0.0790 2.01MM
Geometry & Angles
Corner Radius 0.0080 0.20MM
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
