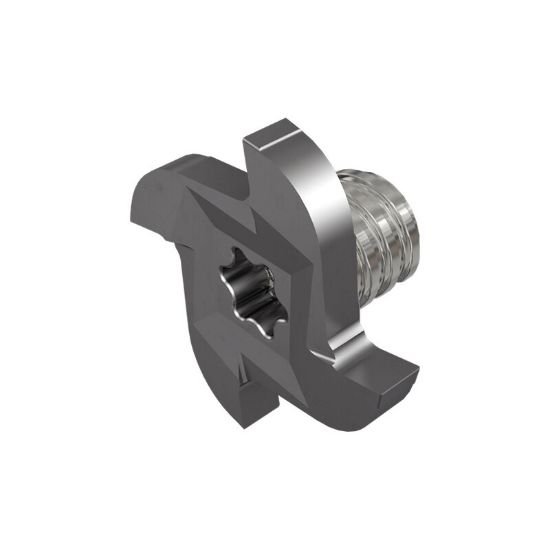

Picture of Iscar MM GRIT 28P-7.0-3.5 IC528 Dia 1.091 SH T10 OAL0.2810T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.1380 3.51mm MULTI-Master

Iscar MM GRIT 28P-7.0-3.5 IC528 Dia 1.091 SH T10 OAL0.2810T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.1380 3.51mm MULTI-Master

Part Number: ISC6410557

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1181897
Vendor: Sussex Tool and Supply
$150.00
ISCAR MM GRIT 28P-7.0-3.5 IC528 T-Slot,Replacable Head Carbide TiCN + TiN 0.1380 3.51MM Flutes 6 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TiCN + TiN
Mach Side Connection Size T10
Overall Length 0.2810 7.14MM
Coolant Thru Non Coolant
Shank/Pilot Dia T10
Flutes/Inserts 6
Tool Dia 1.0910 27.71MM
Length Type STANDARD
Performance Rating High Performance
Cutter Style Screw On T-Slot
Single/Double End Single End
Corner Radius 0.1380 3.51MM
Inch/Metric Inch
Center Cutting Non Center Cutting
Cutting Width 0.2760 7.01MM
Chamfer Angle 90.0°
