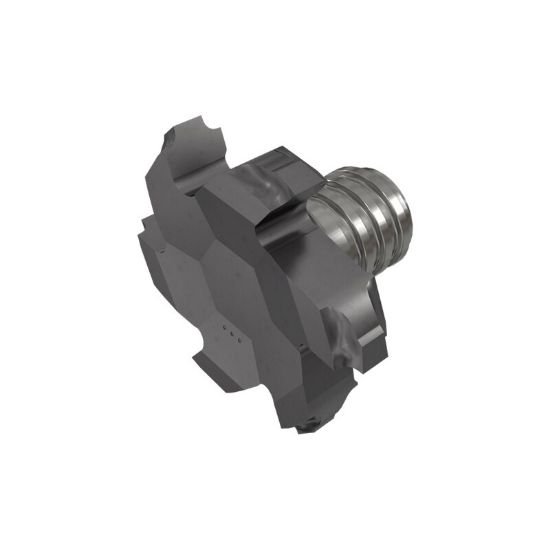

Picture of Iscar MM GRIT 28P-2.7-DR1.0 IC528 Dia 0.976 SH T10 OAL0.6990Corner Rounder,Replacable Head Carbide TiCN + TiN Single End Corner Rounder0.0394 1.00mm MULTI-Master

Iscar MM GRIT 28P-2.7-DR1.0 IC528 Dia 0.976 SH T10 OAL0.6990Corner Rounder,Replacable Head Carbide TiCN + TiN Single End Corner Rounder0.0394 1.00mm MULTI-Master

Part Number: ISC6411391

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1181539
Vendor: Sussex Tool and Supply
$0.00
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Cutter Type Screw On Head, Corner Rounder
Length Type STANDARD
Performance Rating High Performance
Center Cutting Non Center Cutting
Overall Length 0.6990 17.75MM
Machine Side (Toolpost) T10
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
End Of Tool Shape Corner Rounder
Cutter Style Screw On Corner Rounding
Inch Or Metric Inch
Cutting Width 0.2200 5.59MM
Machine Side (Toolpost) Connection Type Screw On
Flutes Or Inserts 6
Shipping State TEXAS
Family Group Multi-Master
Single Or Double End Single End
Cutting Edge Material Carbide
Tool Material Carbide
Mach Side Connection Size T10
Coating TiCN + TiN
Tool Diameter 0.9760 24.79MM
Coolant Thru Non Coolant
Corner Radius 0.0394 1.00MM
Made In USA No
