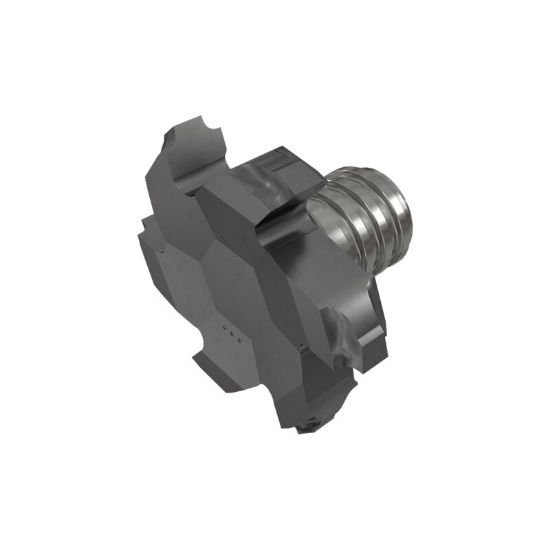

Picture of Iscar MM GRIT 28P-2.6-DR2.0 IC528 Dia 0.92 SH T10 OAL0.7660Corner Rounder,Replacable Head Carbide TiCN + TiN Single End Corner Rounder0.0787 2.00mm MULTI-Master

Iscar MM GRIT 28P-2.6-DR2.0 IC528 Dia 0.92 SH T10 OAL0.7660Corner Rounder,Replacable Head Carbide TiCN + TiN Single End Corner Rounder0.0787 2.00mm MULTI-Master

Part Number: ISC6411392
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181489
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR MM GRIT 28P-2.6-DR2.0 IC528 Corner Rounder,Replacable Head Carbide TiCN + TiN Corner Rounder 0.0787 2.00MM Flutes 6 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head, Corner Rounder
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Rounder
Cutter Style Screw On Corner Rounding
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.7660 19.46MM
Flutes/Inserts 6
Tool Dia 0.9020 22.91MM
Cutting Width 0.2870 7.29MM
Geometry & Angles
Corner Radius 0.0787 2.00MM
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiCN + TiN
