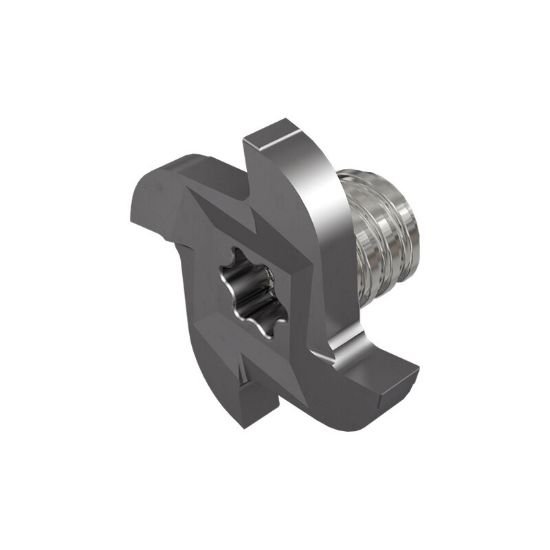

Picture of Iscar MM GRIT 28K-45D-6T10 IC528 Dia 1.091 SH T10Dove Tail,Replacable Head Carbide TiCN + TiN Single End Dove Tail0.0080 0.20mm MULTI-Master

Iscar MM GRIT 28K-45D-6T10 IC528 Dia 1.091 SH T10Dove Tail,Replacable Head Carbide TiCN + TiN Single End Dove Tail0.0080 0.20mm MULTI-Master

Part Number: ISC6410560
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181891
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR MM GRIT 28K-45D-6T10 IC528 Dove Tail,Replacable Head Carbide TiCN + TiN Dove Tail 0.0080 0.20MM Flutes 6 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Dove Tail Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Dove Tail
Cutter Style Screw On Dove Tail
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Shank/Pilot Dia T10
Flutes/Inserts 6
Tool Dia 1.0910 27.71MM
Cutting Width 0.1970 5.00MM
Geometry & Angles
Corner Radius 0.0080 0.20MM
Chamfer Angle 135.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiCN + TiN
