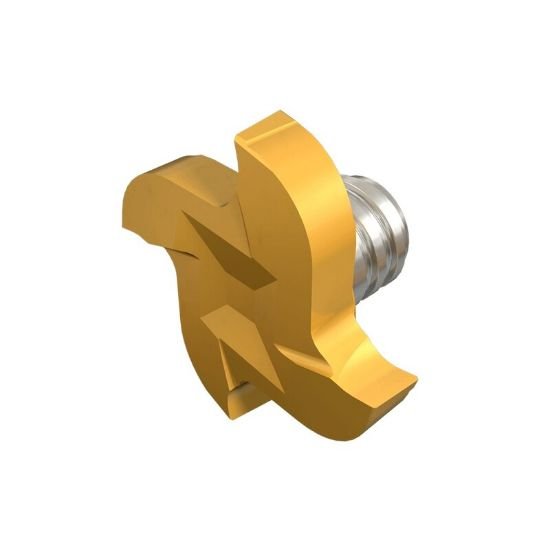

Picture of Iscar MM GRIT 28K-10.0-0.2 IC528 Dia 1.091 SH T10 OAL0.40T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.0080 0.20mm MULTI-Master

Iscar MM GRIT 28K-10.0-0.2 IC528 Dia 1.091 SH T10 OAL0.40T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.0080 0.20mm MULTI-Master

Part Number: ISC6403754
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1181896

Description

ISCAR MM GRIT 28K-10.0-0.2 IC528 T-Slot,Replacable Head Carbide TiCN + TiN 0.0080 0.20MM Flutes 6 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
Cutter Style Screw On T-Slot
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.4000 10.16MM
Shank/Pilot Dia T10
Flutes/Inserts 6
Tool Dia 1.0910 27.71MM
Cutting Width 0.3940 10.01MM
Geometry & Angles
Corner Radius 0.0080 0.20MM
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiCN + TiN
