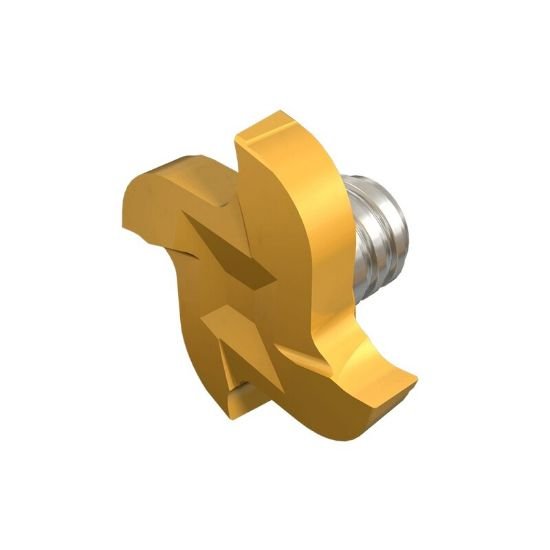

Picture of Iscar MM GRIT 22P-1.00-0.05 IC528 Dia 0.845 SH T08 OAL0.3580T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.0020 0.05mm MULTI-Master

Iscar MM GRIT 22P-1.00-0.05 IC528 Dia 0.845 SH T08 OAL0.3580T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.0020 0.05mm MULTI-Master

Part Number: ISC6403445
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181457
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR MM GRIT 22P-1.00-0.05 IC528 T-Slot,Replacable Head Carbide TiCN + TiN 0.0020 0.05MM Flutes 4 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
Cutter Style Screw On T-Slot
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.3580 9.09MM
Shank/Pilot Dia T08
Flutes/Inserts 4
Tool Dia 0.8540 21.69MM
Cutting Width 0.0390 0.99MM
Geometry & Angles
Corner Radius 0.0020 0.05MM
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiCN + TiN
