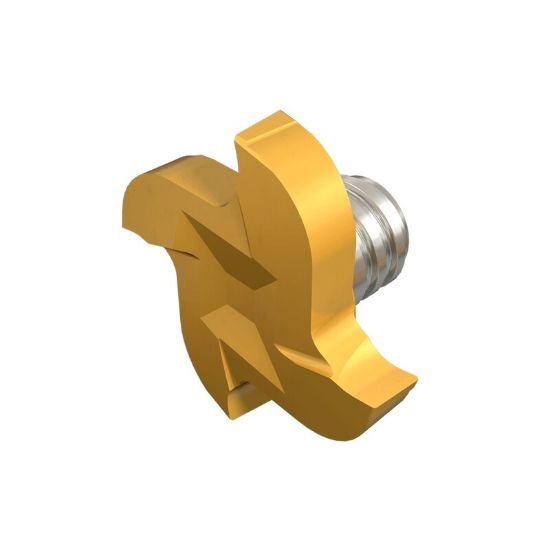

Picture of Iscar MM GRIT 22K-6.00-3.00 IC528 Dia 0.845 SH T08T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.1180 3.00mm MULTI-Master

Iscar MM GRIT 22K-6.00-3.00 IC528 Dia 0.845 SH T08T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.1180 3.00mm MULTI-Master

Part Number: ISC6498769

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1181466
Vendor: Sussex Tool and Supply
$0.00
ISCAR MM GRIT 22K-6.00-3.00 IC528 T-Slot,Replacable Head Carbide TiCN + TiN 0.1180 3.00MM Flutes 4 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TiCN + TiN
Mach Side Connection Size T08
Coolant Thru Non Coolant
Shank/Pilot Dia T08
Flutes/Inserts 4
Tool Dia 0.8540 21.69MM
Length Type STANDARD
Performance Rating High Performance
Cutter Style Screw On T-Slot
Single/Double End Single End
Corner Radius 0.1180 3.00MM
Inch/Metric Inch
Center Cutting Non Center Cutting
Cutting Width 0.2360 5.99MM
Chamfer Angle 90.0°
