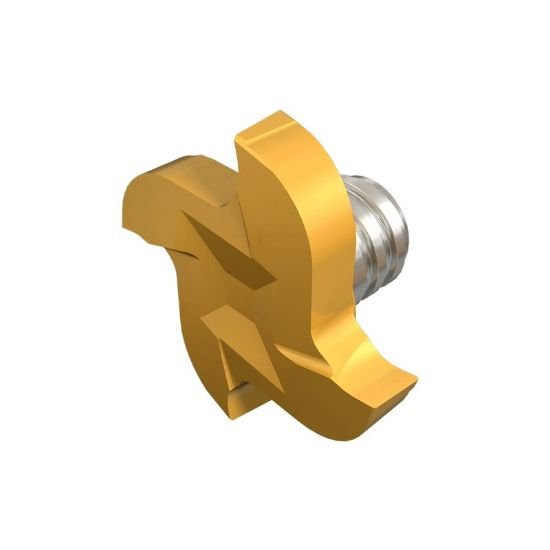

Picture of Iscar MM GRIT 22K-3.25-0.20 IC528 Dia 0.845 SH T08 OAL0.4470T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.0080 0.20mm MULTI-Master

Iscar MM GRIT 22K-3.25-0.20 IC528 Dia 0.845 SH T08 OAL0.4470T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.0080 0.20mm MULTI-Master

Part Number: ISC6403113
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181453
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR MM GRIT 22K-3.25-0.20 IC528 T-Slot,Replacable Head Carbide TiCN + TiN 0.0080 0.20MM Flutes 4 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
Cutter Style Screw On T-Slot
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.4470 11.35MM
Shank/Pilot Dia T08
Flutes/Inserts 4
Tool Dia 0.8540 21.69MM
Cutting Width 0.1280 3.25MM
Geometry & Angles
Corner Radius 0.0080 0.20MM
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiCN + TiN
