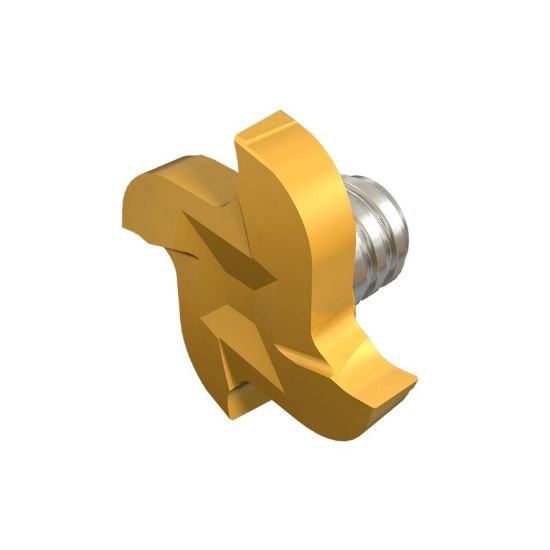

Picture of Iscar MM GRIT 22K-0.76-0.00 IC528 Dia 0.845 SH T08T-Slot,Replacable Head Carbide TiCN + TiN Single End Sharp MULTI-Master

Iscar MM GRIT 22K-0.76-0.00 IC528 Dia 0.845 SH T08T-Slot,Replacable Head Carbide TiCN + TiN Single End Sharp MULTI-Master

Part Number: ISC6403098
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1181438

Description

ISCAR MM GRIT 22K-0.76-0.00 IC528 T-Slot,Replacable Head Carbide TiCN + TiN Sharp Flutes 4 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
Cutter Style Screw On T-Slot
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Flutes/Inserts 4
Tool Dia 0.8540 21.69MM
Cutting Width 0.0300 0.76MM
Geometry & Angles
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiCN + TiN
