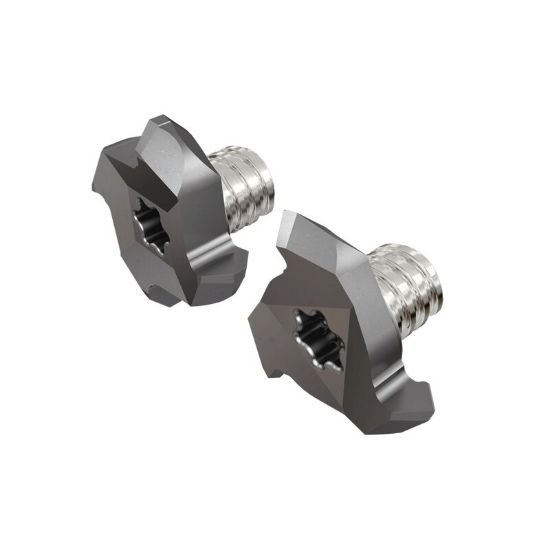

Picture of Iscar MM GRIT 18P-45A IC528 Dia 17.70mm SH T06Chamfer Mill,Replacable Head Carbide TiCN + TiN Single End Cham Mill0.0040 0.10mm MULTI-Master

Iscar MM GRIT 18P-45A IC528 Dia 17.70mm SH T06Chamfer Mill,Replacable Head Carbide TiCN + TiN Single End Cham Mill0.0040 0.10mm MULTI-Master

Part Number: ISC6499151
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181248
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR MM GRIT 18P-45A IC528 Chamfer Mill,Replacable Head Carbide TiCN + TiN Cham Mill 0.0040 0.10MM Flutes 3 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Chamfer
Cutter Style Screw On Double Angle Chamfer
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Flutes/Inserts 3
Tool Dia 0.6969 17.70MM
Cutting Width 0.1340 3.40MM
Geometry & Angles
Corner Radius 0.0040 0.10MM
Chamfer Angle 45.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiCN + TiN
