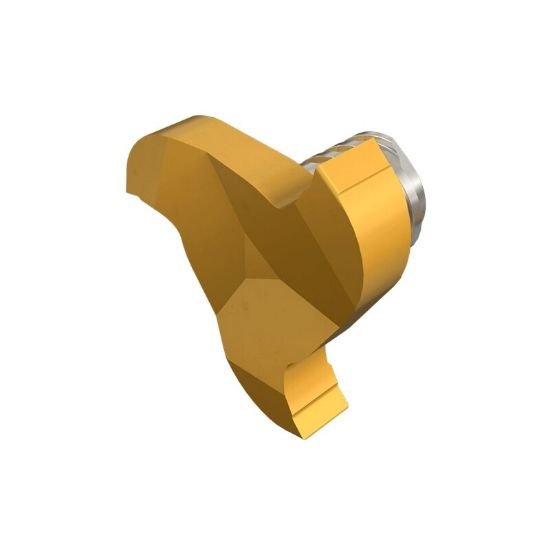

Picture of Iscar MM GRIT 18K-1.40-0.05 IC528 Dia 17.70mm SH T06T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.0020 0.05mm MULTI-Master

Iscar MM GRIT 18K-1.40-0.05 IC528 Dia 17.70mm SH T06T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.0020 0.05mm MULTI-Master

Part Number: ISC6402864

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1181241
Vendor: Sussex Tool and Supply
$0.00
ISCAR MM GRIT 18K-1.40-0.05 IC528 T-Slot,Replacable Head Carbide TiCN + TiN 0.0020 0.05MM Flutes 3 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TiCN + TiN
Mach Side Connection Size T06
Coolant Thru Non Coolant
Shank/Pilot Dia T06
Flutes/Inserts 3
Tool Dia 0.6969 17.70MM
Length Type STANDARD
Performance Rating High Performance
Cutter Style Screw On T-Slot
Single/Double End Single End
Corner Radius 0.0020 0.05MM
Inch/Metric Inch
Center Cutting Non Center Cutting
Cutting Width 0.0550 1.40MM
Chamfer Angle 90.0°
