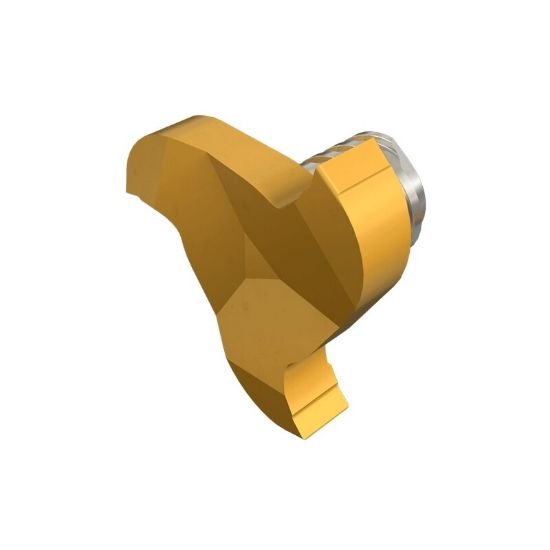

Picture of Iscar MM GRIT 16P-3.00-0.20 IC528 Dia 15.70mm SH T06T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.0080 0.20mm MULTI-Master

Iscar MM GRIT 16P-3.00-0.20 IC528 Dia 15.70mm SH T06T-Slot,Replacable Head Carbide TiCN + TiN Single End 0.0080 0.20mm MULTI-Master

Part Number: ISC6403562
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181135
Vendor: Sussex Tool and Supply
$52.90

Description

ISCAR MM GRIT 16P-3.00-0.20 IC528 T-Slot,Replacable Head Carbide TiCN + TiN 0.0080 0.20MM Flutes 3 Single End MULTI-MASTER Carbide TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
Cutter Style Screw On T-Slot
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Shank/Pilot Dia T06
Flutes/Inserts 3
Tool Dia 0.6181 15.70MM
Cutting Width 0.1180 3.00MM
Geometry & Angles
Corner Radius 0.0080 0.20MM
Chamfer Angle 90.0°
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiCN + TiN
