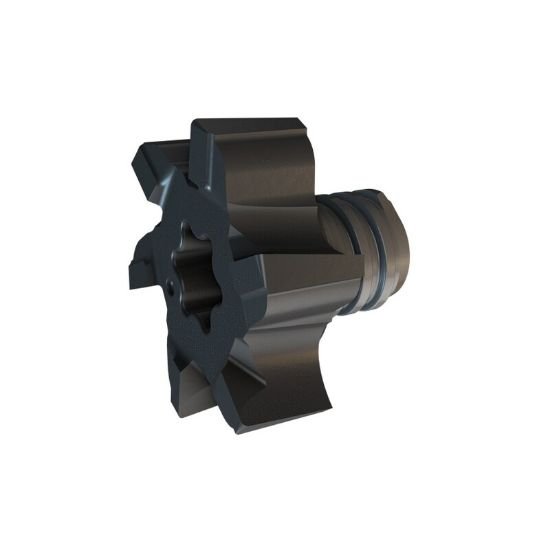

Picture of Iscar MM FM200-60R0.4-06T08 IC908 Dia 20mm SH T08 LOC 0.2360 OAL0.2680Face Mills,Replacable Head Carbide TiAlN Single End 0.0157 0.40mm MULTI-Master

Iscar MM FM200-60R0.4-06T08 IC908 Dia 20mm SH T08 LOC 0.2360 OAL0.2680Face Mills,Replacable Head Carbide TiAlN Single End 0.0157 0.40mm MULTI-Master

Part Number: ISC5668599 0.787 x T08 x 0.236 x 0.268

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1181384
Vendor: Sussex Tool and Supply
$86.72
ISCAR MM FM200-60R0.4-06T08 IC908 Face Mills,Replacable Head Carbide TiAlN 0.0157 0.40MM Flutes 6 Single End MULTI-MASTER Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating TiAlN
Mach Side Connection Size T08
Overall Length 0.2680 6.81MM
Coolant Thru Non Coolant
Shank/Pilot Dia T08
Flutes/Inserts 6
Tool Dia 0.7874 20.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.2360 5.99MM
Cutter Style Screw On Face Milling
Single/Double End Single End
Corner Radius 0.0157 0.40MM
Inch/Metric Inch
Center Cutting Non Center Cutting
Chamfer Angle 90.0°
