Home
/
Traditional Search
/
Cutting Tools
/
Indexable Tools
/
Milling
/
Screw On Head
/
Feed Mill
/

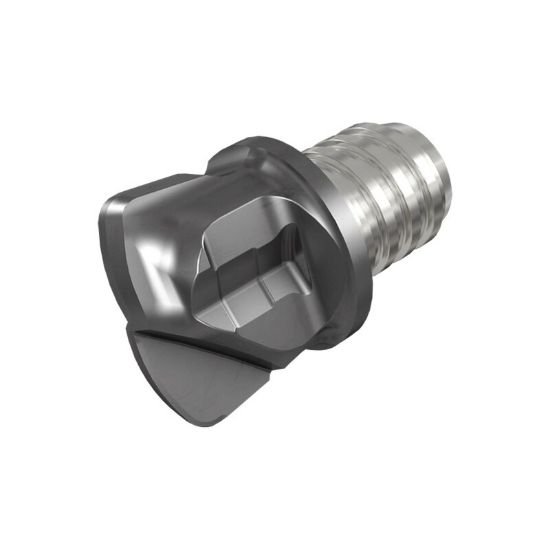

Iscar MM FF500R08-L59-2T08 IC908 Dia 1/2 SH T08 LOC 0.0270 OAL0.9040Feed Mill,Replacable Head Carbide TiAlN Single End High Feed0.0980 2.49mm Solid-Feed-Mill
Iscar MM FF500R08-L59-2T08 IC908 Dia 1/2 SH T08 LOC 0.0270 OAL0.9040Feed Mill,Replacable Head Carbide TiAlN Single End High Feed0.0980 2.49mm Solid-Feed-Mill
Part Number: ISC5696877 0.500 x 0.453 x 0.027 x 0.904
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
ISCAR
SKU:
1183350
Vendor:
Sussex Tool and Supply
$95.70
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
ISCAR MM FF500R08-L59-2T08 IC908 Feed Mill,Replacable Head Carbide TiAlN High Feed 0.0980 2.49MM Flutes 2 Single End Solid-Feed-Mill Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name
Attribute value
Shipping State
TEXAS
Made In USA
NO
Cutter Type
Indexable Feed Mill Screw On Head
Tool Material
Carbide
Cutting Edge Mat
Carbide
Machine Side Connection Type
Screw On
Cut Rating
<53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating
TiAlN
Mach Side Connection Size
T08
Overall Length
0.9040 22.96MM
Coolant Thru
Non Coolant
Flutes/Inserts
2
Tool Dia
0.5000 12.70MM - 1/2
Length Type
STANDARD
Performance Rating
High Performance
Length Of Cut
0.0270 0.69MM
End Of Tool Shape
High Feed
Cutter Style
Carbide Feed Mill
Single/Double End
Single End
Corner Radius
0.0980 2.49MM
Inch/Metric
Inch
Center Cutting
Non Center Cutting
Chamfer Angle
95.0°
