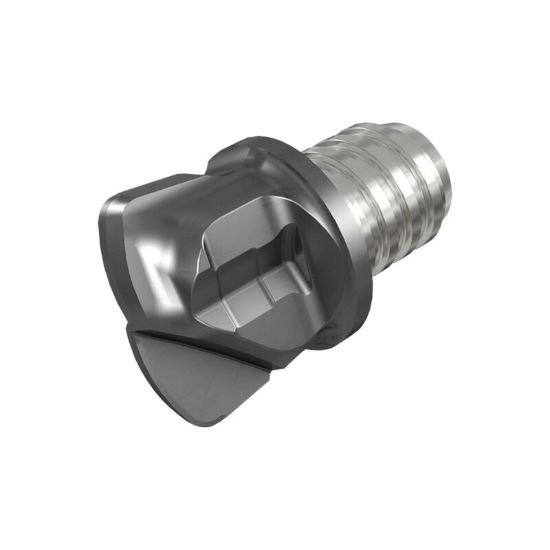

Picture of Iscar MM FF160R2.0-2T10 IC908 Dia 16mm SH T10 LOC 0.0430 OAL0.9940Feed Mill,Replacable Head Carbide TiAlN Single End High Feed0.1180 3.00mm Solid-Feed-Mill

Iscar MM FF160R2.0-2T10 IC908 Dia 16mm SH T10 LOC 0.0430 OAL0.9940Feed Mill,Replacable Head Carbide TiAlN Single End High Feed0.1180 3.00mm Solid-Feed-Mill

Part Number: ISC5605013 0.630 x 0.598 x 0.043 x 0.994
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1181201
Vendor: Sussex Tool and Supply
$140.05

Description

ISCAR MM FF160R2.0-2T10 IC908 Feed Mill,Replacable Head Carbide TiAlN High Feed 0.1180 3.00MM Flutes 2 Single End Solid-Feed-Mill Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 0.9940 25.25MM
Flutes/Inserts 2
Tool Dia 0.6299 16.00MM
Length Of Cut 0.0430 1.09MM
Geometry & Angles
Corner Radius 0.1180 3.00MM
Chamfer Angle 97.0°
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
